Multi-Channel Fully Isolated high-Current DC Acquisition and Monitoring, Real-time Read Analog Input Module Hall Sensor 8/12/16 - (Color: 16 Channel)

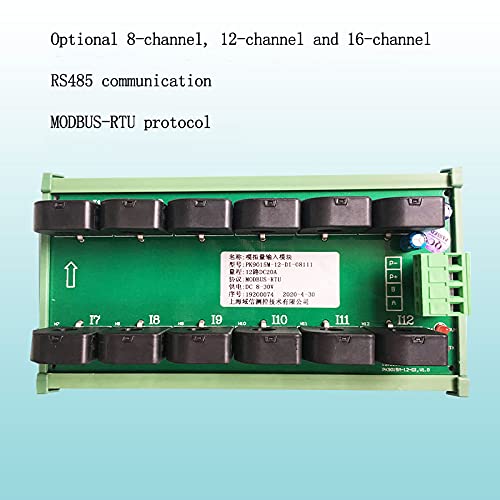

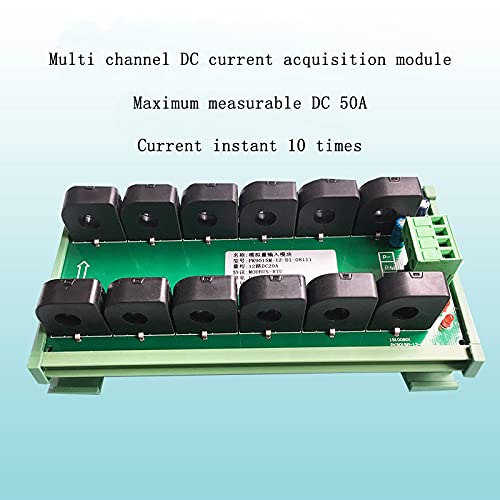

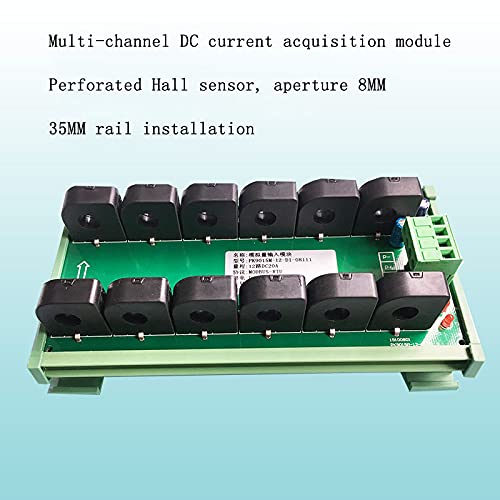

1、Introduction to module performanceThe module can measure 8/12/16 channels of DC current signals, using Hall current sensor perforation input, and the channels are isolated from each other. Its output is 485 bus mode, MODBUS-RTU communication protocol, which is convenient for PLC and configuration software application.2、Module parameterInput signalDC5A,10A,20A,50A etc.Measurement accuracy0.5 levelAnalog resolutionUsing 16-bit AD chip, the resolution is full scale* (1/10000)Input isolationIsolation between channels, isolation voltage 2500VData UpdateSingle channel 100mS, 12-channel cyclic measurement, data update cycle is 12SOperating VoltageDC8-30V, with power polarity protection, maximum 3WCommunication InterfaceRS-485 interface, two-wire system, ±15KV ESD protectionCommunication rate1200~19200bps can be set by software, default is 9600Communication format1 start bit, 8 data bits, 1 stop bit, no parity bitTransmission distance<1200M(9600bps)Communication addressRange 1~255, can be set by software, address 0-bit broadcast addressDimensionsLength x width x height=158mm*118mm*58mmInstallation method35 mm DIN rail mountingWorking environment-20℃~70℃, 35%~85%RH non-condensingNote: LED indicator light, run: the module is flashing under normal operation state, TX: communication send number is on2、Terminal definitionNameDescriptionNoteCurrent inputAccording to the current directionP+Power+Power supply DC8-30v, power consumption ＜ 3WP-Power -ARS485 signal +RS-485 CommunicationBRS485 signal -3、Module Application Guide1. Communication connectionThe RS485 communication port of the module uses shielded twisted pair connection. When networking, 32 modules can be hung on the same RS485 network, and 256 modules can be connected toget

• Color: 16 channel
• Condition: New
• Type: Logic ICs
