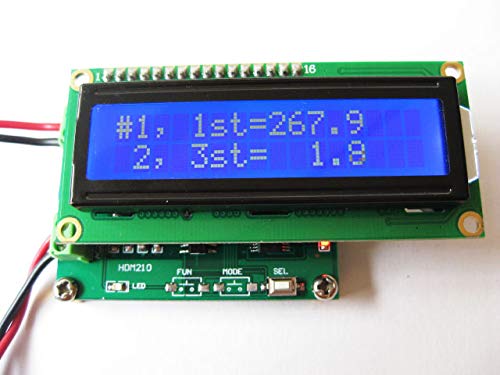

HDM210 Harmonic Distortion Analyzer AC Power Harmonic Analyzer 10Hz~1kHz DistortionAnalyzer
4.6 (106 items)
Limited Time Sale$20.52 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211161390 | Release Date | 2026/04/04 | List Price | $13.68 | Model Number | 211161390 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1、 Overview: HDM210 is a harmonic distortion instrument, which mainly detects the ratio of the fundamental wave to the third harmonic of the sine wave signal. Most of the harmonic problems are caused by the third harmonic. Because the third harmonic is the second highest energy of the fundamental component. Therefore, we are only concerned about finding the third harmonic distortion in formula 1 THD = V3/V1*100% (1) Note: V1: fundamental wave; V3: 3rd harmonic; THD: harmonic distortion 2、 Product application: ● Harmonic distortion meter ● Frequency meter 3、 Technical parameter table: SN Item Parameter Unit Remarks 1 Measurement frequency range 10~1000 Hz 2 Measuring voltage range 1~10 VDC Maximum amplitude 10.0Vpp AC signal 3 Measurement distortion 0.1~100.0% 4 Working voltage 7~12 VDC 5 Working current<50 mA 6 Size 56 * 45 * 20 mm L X W X H
- Measurement frequency range 10~1000 Hz
- Measuring voltage range 1~10 VDC Maximum amplitude 10.0Vpp AC signal
- Measurement distortion 0.1~100.0%
- Working voltage 7~12 VDC
- Size 56 * 45 * 20 mm L X W X H
| Model | YILUBAO |
|---|---|
| Brand Name | YILUBAO |
| Manufacturer | YILUBAO |
| Mounting Type | Freestanding |
| Specification Met | Internal/Device-specific Specifications |
| Number of Channels | 1 |
| Included Components | see details |
| Warranty Description | see details |
| Maximum Supply Voltage | 12 Volts (DC) |
| Minimum Supply Voltage | 7 Volts (DC) |
